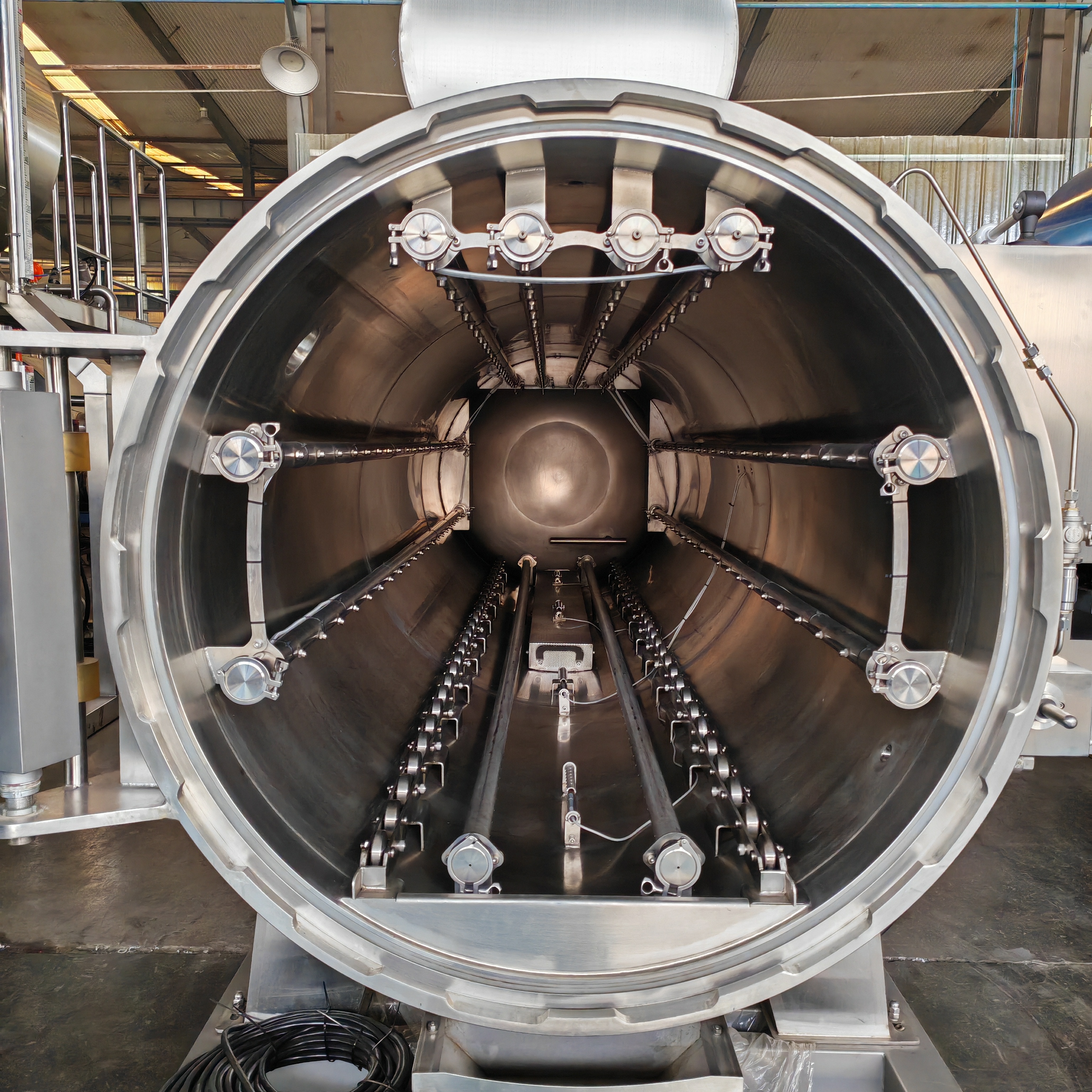

Coffee stick retort ensures Indirect heating and cooling for gentle sterilization. Water spray retort can linear temperature and pressure control and balanced pressure to protect product packaging and stable and uniform sterilization performance.

Features:

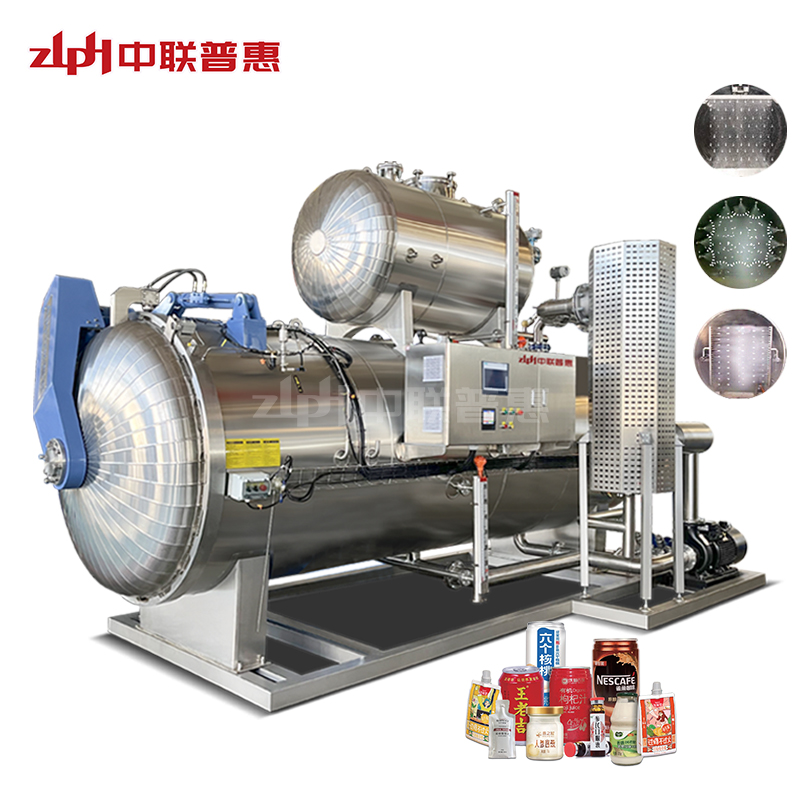

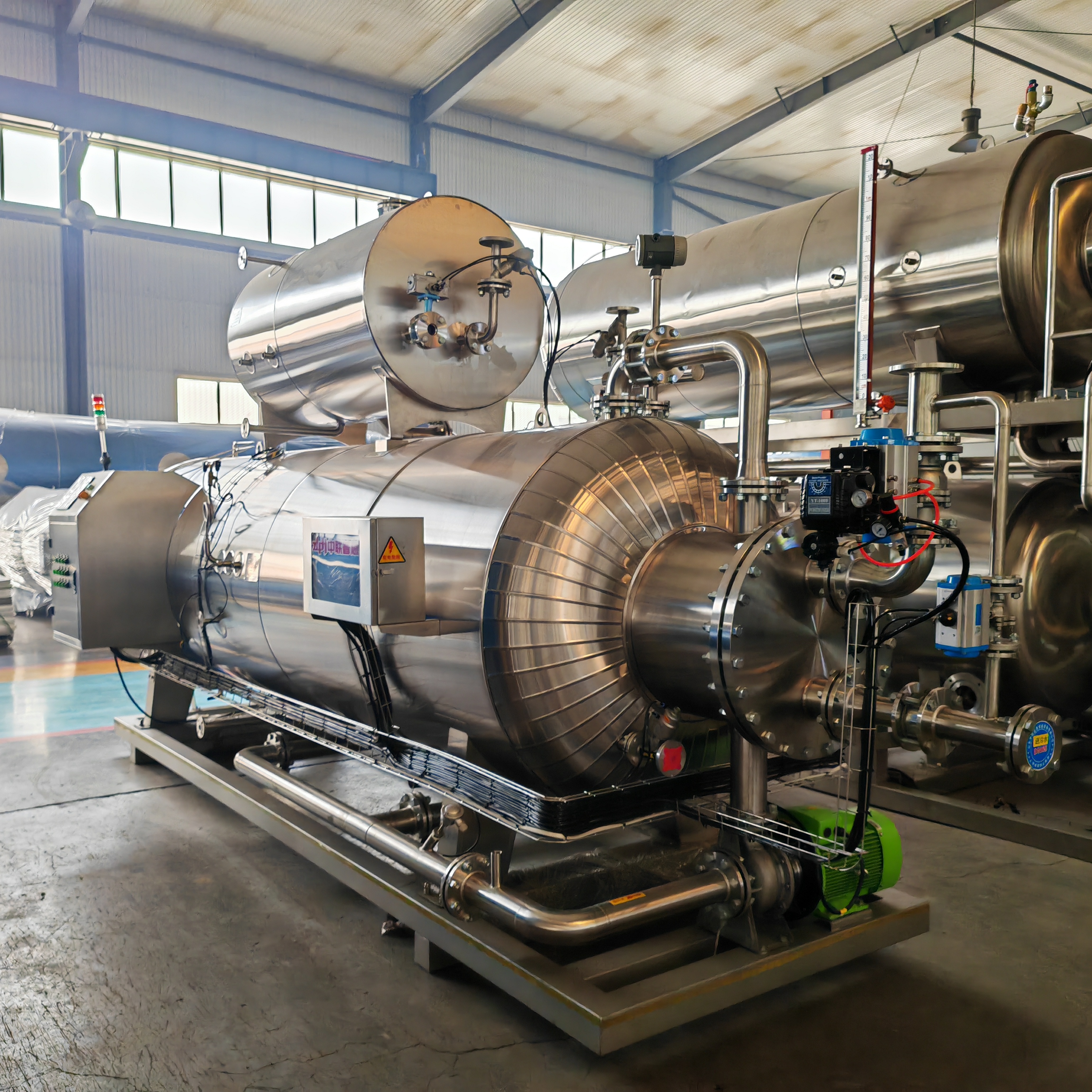

Coffee stick water spray retort can also be called Water Cascade retort machine, Water Spray retort machine, Water retort machine, retort autoclave.

Water spray retort autoclave designed into 3 modes of water spray for handling various containers of high temperature sterilizationand Water retort machine supports smart PLC control and one-click start;

water spray retort

Three water mist modes: Having three water mist modes means the autoclave can adjust beverage retort's spray mechanism to the specific requirements of different containers or sterilization processes. Water spray retort machine  versatility allows for more precise control of the sterilization process, catering to a variety of container types, sizes and contents.

High temperature sterilization: Water retort machine are capable of reaching the high temperatures required for sterilization, retort autoclave ensuring that containers and retort autoclave's contents are thoroughly sterilized to meet regulatory and safety standards.

Coffee stick water spray retort's smart PLC control: The inclusion of a programmable logic controller (PLC) indicates that the retort autoclave is equipped with intelligent automation features.

Water spray retort machine one-button start: The one-button start function simplifies the operation of the Water Spray retort machine, making it more user-friendly and efficient.

 Our company adopts multi-layer insulation technology to improve energy saving effect, reduce heat loss, and improve the workshop environment. The outer surface temperature of the cylinder is less than 40℃, reducing heat loss by 4% and saving more than 8% of steam energy.

  Coffee stick retort machine in our company undergoes pressure testing to meet domestic ISO9001 certification, as well as international EAC, ASME, DOSH certification, etc. Coffee stick retort machine will undergo a reassembly test and a thermal distribution test to ensure that each device meets the acceptance criteria.

Parameter:


SpecificationsTray size (mm)Basket size (mm)Power kWVolume m3

Floor area

(length/width/height mm

DN700x12001140x420x420540x380x4202.20.55
2700x1500x1700
DN900x1800890x560x600560x560x56041.32
3000x1600x2100
DN1000x2400790x630x650700x605x62042.124000x1800x2500
DN1200x3600890x800x800850x780x7807.54.466000x2000x2800
DN1400x45001100x930x9001050x900x90011
7.237000x2500x3100
DN1500x52501030x970x9701000x1000x97015
10.027700x2700x3300
DN1600x65001220x1050x10501010x1050x10501813.978500x3100x3000
DN1800x75001180x1180x11601180x1180x11602219.729800x3100x3500


Application:


Glass packaging: glass container, glass jar, glass bottle

Rigid packaging: aluminum tin, tinplate can

Flexible packaging: aluminum foil pouch, retort pouch, vacuum pouch

Plastic packaging: PP bottle, HDPE bottle, PE bottle


water spray retort machine
coffee stick water spray retort


water spray retort

water spray retort machine
coffee stick water spray retort
