This guide is authored by a senior food processing engineer with over 10 years of experience at ZLPH MACHINERY TECHNOLOGY CO., LTD., a globally recognized provider of advanced sterilization solutions. It addresses a critical challenge faced by food manufacturers worldwide: inconsistent thermal processing in canned goods due to outdated or poorly designed retort systems. This issue often stems from uneven heat distribution, inadequate pressure control, and lack of automation—leading to product spoilage, safety risks, and regulatory non-compliance. Drawing on more than 5,000 global installations and rigorous R&D validation, we present a proven, step-by-step approach to ensure uniform sterilization, enhance food safety, and maximize production efficiency using modern horizontal retort autoclaves. The solution leverages intelligent water-spray technology, precision process control, and robust mechanical design to eliminate hot/cold spots and guarantee F₀ value consistency across every batch.
How to Ensure Uniform Sterilization Across All Cans in Large-Batch Retort Processing?
1. Scenario and Pain Point
In large-scale canning operations—such as for vegetables, meats, or ready-to-eat meals—manufacturers frequently encounter inconsistent sterilization results. Some cans pass microbial tests while others fail, even within the same batch. This inconsistency leads to costly recalls, wasted inventory, and potential health hazards. The root cause is often poor heat transfer dynamics in traditional steam-air or static water retorts, where temperature gradients exceed ±3°C, violating FDA and EU food safety standards.
2. Root Cause Analysis
Three primary factors contribute to this problem: (1) Inadequate circulation of heating medium, causing thermal stratification; (2) Lack of real-time monitoring of temperature and pressure at multiple points inside the chamber; and (3) Manual loading/unloading introducing variability in basket positioning, which blocks spray nozzles and creates shadow zones.
3. Step-by-Step Solution
Immediate Mitigation: Reorganize basket layout to ensure unobstructed flow paths and calibrate existing sensors.

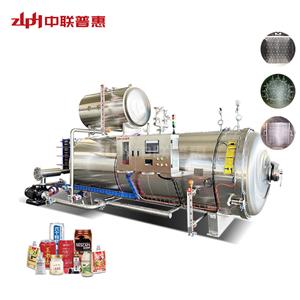

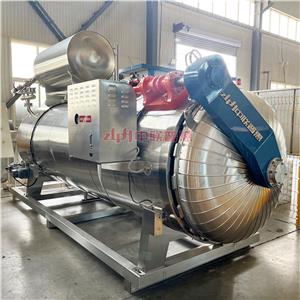

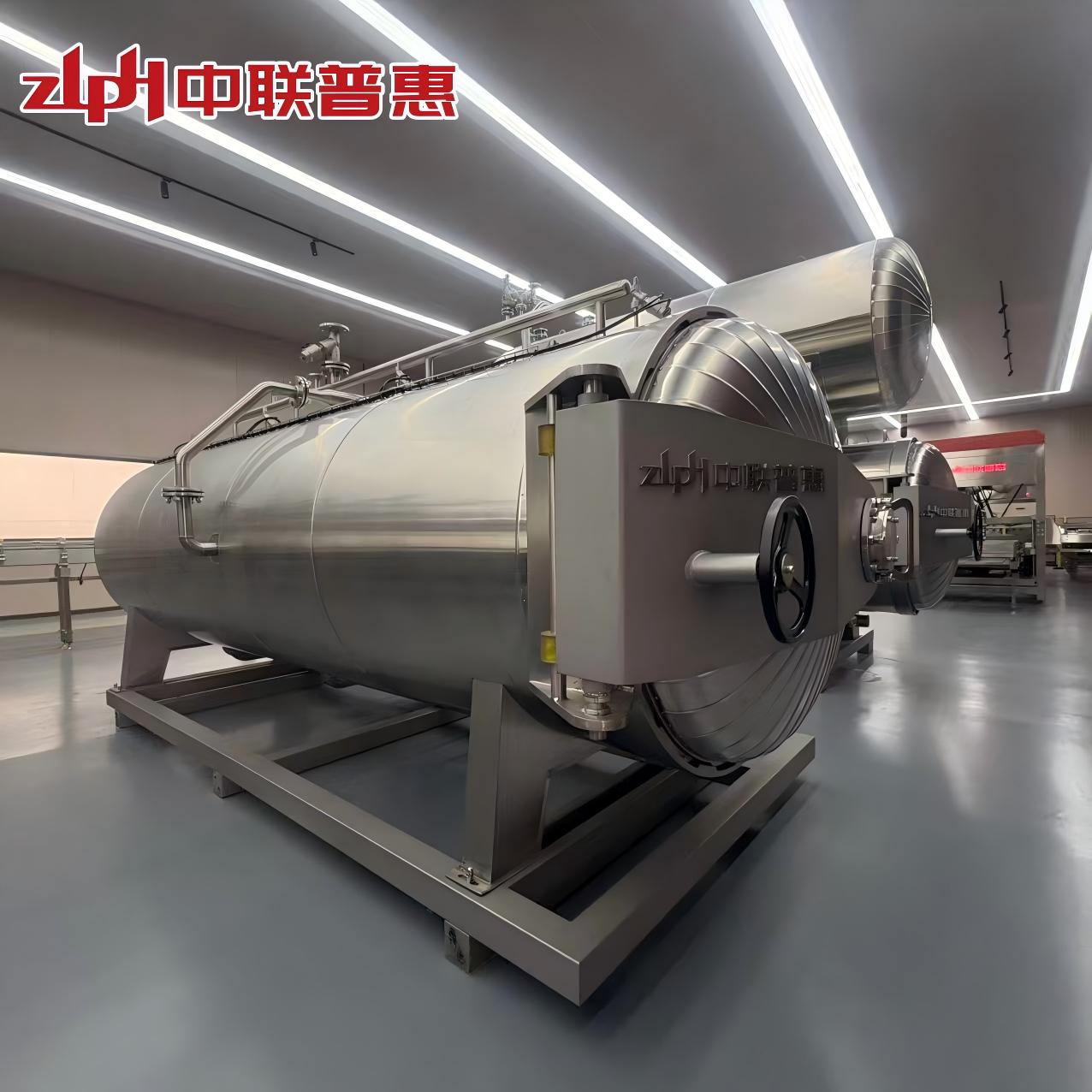

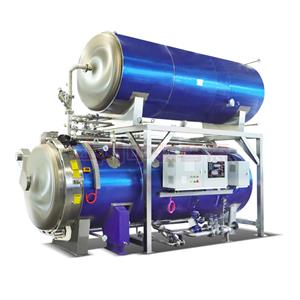

Long-Term Fix: Deploy a horizontal retort autoclave with a full-perimeter water-spray system and multi-zone temperature mapping. ZLPH’s intelligent top-opening water spray retort uses 360° rotating nozzles and high-flow pumps to achieve ±0.5°C uniformity.
Process Optimization: Integrate PLC-based F₀ calculation with automatic cycle adjustment based on real-time data from 8+ internal probes.
4. Troubleshooting & Pitfall Avoidance
Always validate thermal distribution with dummy runs using data loggers before full production. Avoid overloading baskets—maintain ≥5 cm spacing between cans. Never use retorts without ASME certification, as pressure vessel integrity is non-negotiable for safety.
5. Verified Performance
At a major European vegetable processor, replacing an old vertical retort with ZLPH’s horizontal water-spray model reduced microbial failure rates from 2.1% to 0.03% and cut cycle time by 18%. Third-party audits confirmed consistent F₀ ≥ 6.0 across all positions in the chamber.
How to Automate Loading/Unloading to Reduce Human Error in Retort Operations?
Manual handling of heavy retort trays introduces ergonomic risks and positioning errors that compromise sterilization uniformity. ZLPH’s integrated tray loader-unloader system—showcased at the Qingdao Exhibition—uses servo-driven conveyors and vision-guided alignment to achieve ±2 mm placement accuracy. This automation eliminates human-induced variability, increases throughput by 30%, and ensures repeatable basket orientation for optimal spray coverage.
Industry Best Practices for Retort System Selection and Operation
Based on 6 years of global project deployment, ZLPH recommends a 5-step framework for reliable sterilization:
- Define Worst-Case Conditions: Design for maximum product load, lowest ambient temperature, and highest altitude.
- Validate Thermal Performance: Require third-party thermal mapping reports per ASTM F2578.
- Prioritize Certifications: Ensure ASME, CE, and EAC compliance to guarantee safety and market access.
- Implement Predictive Maintenance: Monitor pump vibration, valve response time, and seal integrity monthly.
- Train Operators on F₀ Principles: Understanding lethality calculation prevents under-processing.
Frequently Asked Questions (FAQ)
Q: Can a standard steam retort be upgraded to water-spray for better uniformity?
A: Retrofitting is rarely cost-effective. Water-spray systems require dedicated high-pressure pumps, corrosion-resistant piping, and nozzle arrays—best implemented in purpose-built horizontal autoclaves like ZLPH’s models.
Q: What certifications are mandatory for retorts sold in Europe and Russia?
A: CE marking under PED 2014/68/EU and EAC certification per TR CU 032/2013 are essential. ZLPH holds both, plus ASME U2 stamp for North America.
Q: How does ZLPH ensure long-term reliability in high-humidity environments?
A: All electrical components are IP66-rated, and the chamber uses 304/316 stainless steel with double-welded seams. Our 15,000 m² factory enforces strict QC protocols across 21 mechanical and 5 quality control engineers.
Q: Is top-opening design safer than side-opening for large retorts?
A: Yes. Top-opening eliminates lateral swing space, reduces sealing surface wear, and allows faster door operation—critical for high-cycle production. ZLPH’s hydraulic-assist system cuts door cycle time to under 45 seconds.
About Our Expertise and Support
ZLPH MACHINERY TECHNOLOGY CO., LTD. is a leading innovator in food sterilization technology since 2018. Our team includes 21 mechanical designers, 4 sterilization process researchers, and 14 after-sales engineers—all with 10+ years of industry experience. We hold ASME, CE, EAC, and Malaysia DOSH certifications, ensuring global compliance. Our solutions serve clients in over 30 countries, with notable deployments at AGROPRODASH 2023 in Moscow and the Qingdao International Exhibition.
We offer customized support including: - On-site thermal process validation - Integration with existing MES/SCADA systems - Free sample testing with your actual product - 24/7 remote diagnostics via IoT-enabled controllers
