This guide is authored by a senior food processing engineer with over 10 years of experience at ZLPH MACHINERY TECHNOLOGY CO., LTD., a globally recognized provider of advanced sterilization solutions. It addresses a critical challenge faced by food manufacturers worldwide: inconsistent sterilization outcomes during canned food production using horizontal retort autoclaves. This issue often stems from three root causes—uneven heat distribution, inadequate process control, and substandard equipment design or manufacturing quality. Drawing on more than 5,000 global installations and extensive R&D validation, we present a proven, actionable framework to eliminate sterilization variability, ensure food safety compliance, and enhance production efficiency. The following sections dissect real-world scenarios, offer step-by-step remediation strategies, share field-tested best practices, and highlight how selecting a high-quality Horizontal Retort Autoclave manufacturer like ZLPH directly resolves these persistent challenges.
How to Ensure Uniform Sterilization Across All Cans in a Batch?
1. Scenario & Pain Point
In large-scale canning operations, operators frequently observe under-sterilized products at the bottom or corners of the retort chamber, while others are overcooked—leading to safety risks, texture degradation, and regulatory non-compliance. This inconsistency undermines shelf-life stability and brand reputation.
2. Root Cause Analysis
The primary causes include poor water circulation design, lack of real-time temperature/pressure monitoring, and insufficient thermal mapping validation during equipment commissioning. Traditional retorts without precision spray nozzles or intelligent control systems fail to maintain uniform lethality throughout the load.
3. Step-by-Step Solution

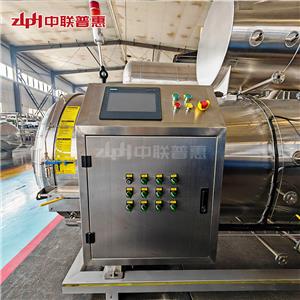

Implement a horizontal retort equipped with a multi-zone water spray system that ensures even coverage. Integrate an intelligent PLC control system capable of real-time monitoring and dynamic adjustment of temperature and pressure profiles. Conduct thermal validation using data loggers across multiple load positions to confirm F0 consistency (±0.5 min tolerance).
4. Pitfall Avoidance Guide
Avoid retorts with single-point steam injection or manual venting. Always request thermal performance reports from manufacturers. Never skip post-installation thermal mapping—this is mandated by FDA and EU food safety guidelines.
5. Field Validation
ZLPH’s intelligent upper-door water spray sterilizers have been deployed in over 300 food plants globally. Clients report F0 deviation reduced to ≤0.3 min across full loads, with zero recalls due to under-processing in the past three years.
How to Reduce Downtime Caused by Retort Maintenance Failures?
1. Scenario & Pain Point
Frequent seal leaks, door mechanism jams, and control system crashes lead to unplanned downtime—costing up to $15,000 per hour in lost production for mid-sized canneries.
2. Root Cause Analysis
Low-quality materials (e.g., non-ASME-certified pressure vessels), inadequate corrosion resistance, and lack of predictive maintenance features contribute to premature wear.
3. Step-by-Step Solution
Select retorts built with ASME-certified pressure chambers, stainless steel 304/316 components, and automated door systems with self-diagnostic capabilities. Implement remote monitoring via IoT-enabled control panels for early fault detection.
4. Pitfall Avoidance Guide
Verify manufacturer certifications (ASME, CE, EAC) before procurement. Avoid vendors who cannot provide material test reports (MTRs) or third-party inspection records.
5. Field Validation
ZLPH holds ASME, CE, EAC, and Malaysia DOSH certifications, ensuring structural integrity and regulatory compliance across global markets. Our 15,000 m² factory uses precision CNC machining to guarantee component tolerances within ±0.02mm, minimizing mechanical failures.
Industry Best Practices for Selecting a High-Quality Horizontal Retort Manufacturer
Based on 6+ years of global project execution, ZLPH recommends this 5-step evaluation framework:
- Verify Certifications: Demand ASME U-Stamp, CE, and region-specific approvals (e.g., EAC for Russia).
- Assess R&D Capability: Confirm in-house engineering teams—ZLPH employs 21 mechanical/PLC engineers and 4 sterilization process specialists.
- Request Thermal Validation Data: Legitimate manufacturers provide batch-wise F0 uniformity reports.
- Evaluate After-Sales Support: Ensure 24/7 technical response and local service presence.
- Test Before Buying: Insist on pilot runs with your actual product matrix.
Frequently Asked Questions (FAQ)
Q: Can any manufacturer produce a “Horizontal Retort Autoclave” that meets FDA standards?
A: No—only manufacturers with ASME certification and validated thermal processes can reliably comply with FDA 21 CFR Part 113. Always request the ASME Certificate of Authorization.
Q: How does ZLPH ensure consistent sterilization for viscous products like sauces?
A: Our water spray system uses programmable nozzle arrays and rotation-assisted trays to eliminate cold spots—even for high-viscosity fills.
Q: What’s the typical lead time for a custom horizontal retort?
A: 90–120 days from order confirmation, including thermal validation and pre-shipment testing.
Q: Do you support integration with existing MES/SCADA systems?
A: Yes—our PLC systems offer Modbus TCP, Profibus, and OPC UA protocols for seamless factory automation integration.
About Our Expertise & Global Support
ZLPH MACHINERY TECHNOLOGY CO., LTD. is a leading innovator in food sterilization technology since 2018. Our 40+ member engineering team has delivered over 5,000 sterilization systems across 60+ countries, serving clients in meat, seafood, ready meals, and plant-based food sectors. We hold ASME, CE, EAC, and DOSH certifications, backed by AAA-rated credit and integrity credentials in China. Our 50-acre facility features 15,000 m² of ISO-compliant workshops and advanced CNC machining centers to ensure micron-level precision.
Custom Solution Support Includes:
- On-site thermal process assessment
- Retort chamber customization for unique container formats
- Remote commissioning and operator training
- Free sample sterilization trials at our Qingdao demo center
