ZLPH Retort: A Quality Upgrade Solution for Instant Soybean Products Processing
I. Processing Pain Points and Equipment Innovation for Instant Soybean Products
Instant soybean products (such as marinated dried tofu, spicy beancurd sticks, and flavored soy milk) have become important categories in the snack food and side-dish markets due to their rich plant protein and diverse flavors. However, their processing faces three core challenges:
1. Tenderness and Taste Maintenance: Traditional high-temperature sterilization easily causes dried tofu to harden and beancurd sticks to break, losing their tender and elastic texture.
2. Sterilization Uniformity: When bagged soybean products are stacked, "sterilization blind spots" easily occur in the central areas, posing a high risk of microbial residue.
3. Production Efficiency: Traditional equipment has slow heating/cooling speeds and limited single-batch processing capacity, struggling to meet peak-season production demands.
The ZLPH retort innovatively adopts a full-water spray sterilization technology with top wide-angle spraying + side wide-angle spraying and an intelligent gradient temperature control system, achieving a triple breakthrough in "high-efficiency sterilization + quality preservation + production capacity upgrading" for soybean product characteristics.
II. Core Technology Analysis
(1) Full-Water Spray Sterilization Technology: Dual Wide-Angle Three-Dimensional Coverage, No Dead Zones

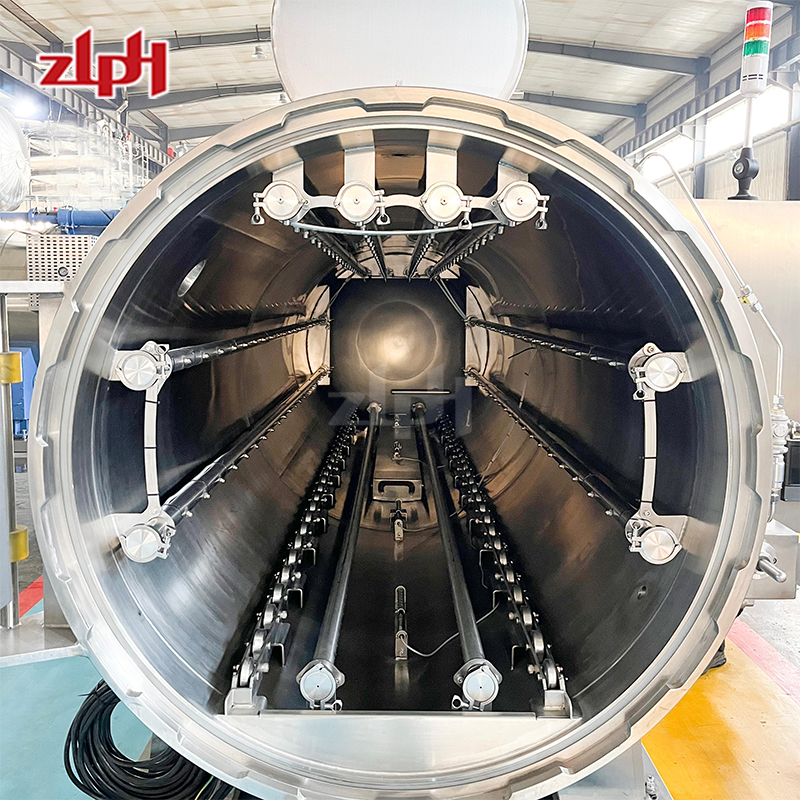

The ZLPH retort uses a three-dimensional cross-spraying mode of top and side wide-angle spraying to create a 360° dead-zone-free sterilization environment:
Top Wide-Angle Spraying: Fan-shaped nozzles cover the top products with hot water at a 120° wide angle, forming a large-area mist-like water flow. This ensures uniform and rapid heating of the upper surface of marinated dried tofu, flavored soy milk, and the tops of packaging bags, raising the temperature of the top layer to 90°C within 5 minutes—30% faster than traditional water immersion.
Side Wide-Angle Spraying: Side nozzle arrays spray water at a 110° wide angle, covering the sides of bagged products and gaps between layers. This drives the sterilization medium to form a horizontal circulation flow, forcibly penetrating gaps between stacked beancurd sticks and dried tofu packaging bags, and gently flipping products to eliminate "thermal dead zones" in the middle and lower layers.
Synergistic Effect: The three-dimensional cross-water flow from top and side wide-angle spraying significantly improves thermal distribution uniformity. Even for multi-layer stacked bagged products, the temperature difference between layers can be controlled within ±1°C, ensuring each bag of soybean products receives the same intensity of thermal sterilization.
(2) Intelligent Gradient Temperature Control System: Precise Protection of Soybean Product Texture
The ZLPH retort adopts a four-stage temperature control model, customizing temperature and time for soybean product characteristics:
Preheating Stage (40°C→90°C, 8 minutes): Gradual heating at a 2°C/minute gradient avoids sudden surface shrinkage of dried tofu, maintaining plant protein elasticity and reducing thermal stress by synchronizing the temperature of packaging bags and contents.
Sterilization Stage (121°C±0.5°C, 15 minutes): The PLC + touchscreen system precisely maintains high temperature. Combined with dynamic heat exchange from dual wide-angle spraying, it ensures thorough killing of heat-resistant bacteria while controlling temperature fluctuations within ±0.3°C to reduce protein denaturation.
Slow Cooling Stage (121°C→60°C, 10 minutes): Gradual water temperature reduction prevents beancurd sticks from swelling due to rapid cooling, maintaining fiber structure integrity. Experiments show this stage reduces beancurd stick breakage rate by 18%.
Rapid Cooling Stage (60°C→30°C, 5 minutes): Rapid cooling via a plate heat exchanger locks in nutrients, retaining 20% more active substances than traditional natural cooling.
(3) High-Efficiency Production Capacity Design: Dual Wide-Angle Spraying Speeds Up, Doubling Capacity
Spraying Efficiency Improvement: The dual wide-angle spraying mode increases heat transfer efficiency by 40%, shortens sterilization time by 15% under the same loading, and raises single-batch processing capacity from 800 bags (for traditional equipment) to 1,200 bags (for 500g bagged dried tofu).
Dual Retort Parallel Mode: Supports simultaneous operation of two retorts, with a maximum daily processing capacity of 20 tons. Combined with rapid heating/cooling technology (3 minutes to heat to 121°C, 10 minutes to cool to 30°C), it improves efficiency by 100% compared to traditional production lines.
III. Quality and Cost-Benefit Improvements
(1) Comprehensive Product Quality Optimization
Texture and Taste: The chewiness of marinated dried tofu decreases from 230N to 180N, with a 26% improvement in softness and tenderness, approaching the texture of handmade marinated products. The integrity rate of beancurd sticks increases from 75% to 95%, basically eliminating breakage caused by thermal stress.
Sterilization Effect: Total bacterial count decreases from ≤10CFU/g to ≤2CFU/g, meeting international commercial sterility standards. The shelf life is stably extended to 12 months, satisfying export-grade quality requirements.
Nutrient Retention: The vitamin B1 retention rate increases from 55% to 82%, and soybean protein solubility remains above 85%, a 12% improvement over traditional processes, ensuring more balanced nutrition.
(2) Significant Reduction in Production Costs
Energy Consumption Optimization:
Steam consumption is reduced by 35%, saving approximately 120 RMB per ton of products. An enterprise with an annual production capacity of 1,000 tons can save 120,000 RMB annually.
Water circulation utilization reaches 80%, saving 20 tons of water daily and reducing sewage treatment loads.
Labor Cost: The fully automatic control system reduces 3 operators, saving 180,000 RMB in annual labor costs while minimizing quality risks from human errors.
IV. Operation Key Points and Equipment Maintenance
(1) Loading and Preprocessing Specifications
Control residual air in vacuum packaging to <3% to avoid packaging displacement caused by side spray water impact.
Stack bagged products in a "品"-shaped pattern on grid trays with a layer spacing ≥3cm to ensure unobstructed penetration of top and side spray water.
(2) Maintenance Key Points
Daily Cleaning: After each sterilization, flush top and side nozzles with a high-pressure water gun to remove soybean debris and seasoning residues, preventing blockages that affect spraying angles. Quarterly Calibration: Entrust professional institutions to calibrate temperature sensors (accuracy ±0.1°C) and pressure sensors (accuracy ±0.01Bar) to ensure precise temperature control and pressure compensation.
V. Typical Application Case
After a leading soybean products enterprise introduced the ZLPH retort, its star product "Spicy Dried Tofu" achieved three major breakthroughs:
Quality Upgrade: Third-party testing showed leading industry levels in crispness and tenderness, with consumer repurchase rates increasing from 65% to 88%.
Capacity Leap: Daily production per line increased from 10 tons to 20 tons, successfully securing an annual 500-ton order from a chain fast-food brand.
Cost Reduction: Comprehensive energy consumption decreased by 28%, saving over 500,000 RMB annually, with the equipment payback period shortened to 1.5 years.
VI. Conclusion
The ZLPH retort redefines the sterilization standards for instant soybean products through its innovative dual wide-angle spraying structure, intelligent temperature control model, and high-efficiency capacity design. Its technology not only solves long-standing quality and efficiency contradictions in the industry but also promotes the upgrading of soybean product processing toward high-endization with its green and intelligent features, becoming a key engine for food enterprises to build core competitiveness.
For equipment technical parameters or customized sterilization solutions, please contact the ZLPH technical team for in-depth consultation.
