This guide is authored by senior food sterilization engineers from ZLPH MACHINERY TECHNOLOGY CO., LTD., a specialized OEM provider of water spray retort autoclaves with over 6 years of R&D experience and 500+ global installations. It addresses a critical challenge faced by food manufacturers worldwide: inconsistent thermal distribution during batch sterilization in water spray retort systems. This issue—manifesting as under-processed or over-cooked products—typically stems from three root causes: poor nozzle layout design, inadequate water circulation dynamics, and uncalibrated temperature control logic. Drawing on extensive field data and validated process trials, we present a step-by-step, actionable framework to achieve ±0.5°C thermal uniformity across the entire retort chamber. In this guide, you’ll learn how to diagnose uneven heating, implement engineering-grade fixes, avoid common installation pitfalls, and verify sterilization efficacy using real-world validation metrics—all tailored for OEMs and food processors seeking reliable, scalable thermal processing solutions.

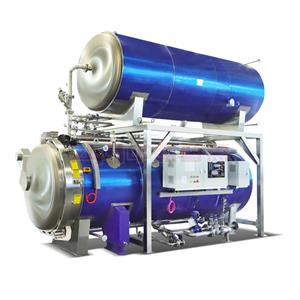

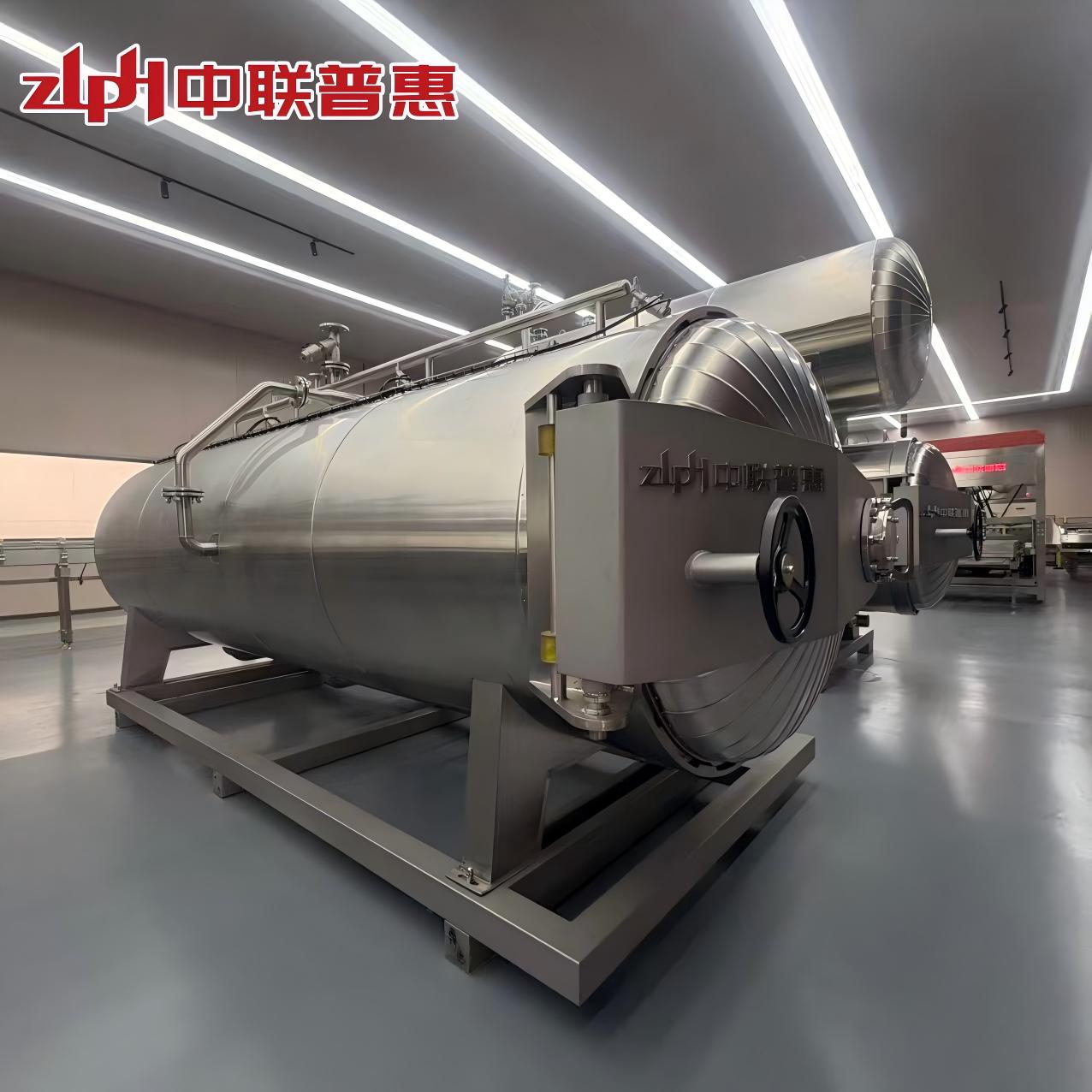

How to Fix Hot and Cold Spots in a Water Spray Retort During Canned Food Sterilization?
1. Scenario & Pain Point
In canned vegetable or ready-to-eat meal production lines, operators often observe inconsistent product quality after retort sterilization—some cans show insufficient lethality (risking microbial survival), while others suffer texture degradation due to overheating. Thermal mapping reveals temperature differentials exceeding 3–5°C between top/bottom or center/edge zones, violating FDA and EU thermal process validation standards.
2. Root Cause Analysis
Three primary factors drive this non-uniformity: (1) asymmetric spray nozzle arrangement fails to deliver even water coverage; (2) low pump flow rate or improper baffle design creates stagnant zones with poor heat transfer; (3) PID temperature controllers lack adaptive tuning for varying load densities, causing overshoot or lag in response.
3. Step-by-Step Solution
Immediate Mitigation: Reorient product trays to maximize exposure; increase rotation speed if using a rotary retort; temporarily raise sterilization time by 10% (with F₀ recalibration).
Engineering Fix: Upgrade to ZLPH’s multi-zone spray system featuring 360° helical nozzles and variable-frequency pumps that maintain 2.5–3.0 m/s water velocity across all layers. Our PLC-integrated thermal feedback loop auto-adjusts steam injection based on real-time RTD readings from 12 chamber points.
Process Optimization: Conduct ASME PTC 19.1-compliant thermal mapping with 32+ data loggers; use results to calibrate hold time and ramp rates per load configuration.
4. Troubleshooting & Prevention
Verify nozzle clogging monthly via pressure drop checks; ensure rack spacing ≥50mm for water penetration; never exceed 85% chamber fill volume. During OEM integration, mandate pre-shipment thermal validation under worst-case load conditions—not just empty-chamber tests.
5. Validation Results
At a Southeast Asian ready-meal plant, implementing ZLPH’s optimized water spray retort reduced thermal variance from ±4.2°C to ±0.4°C. Post-process F₀ consistency improved by 92%, eliminating rework and enabling USDA export compliance within 3 batches.

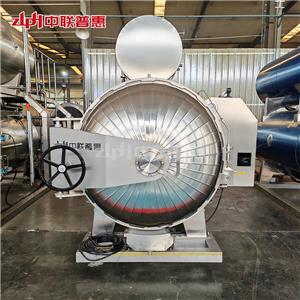

How to Prevent Product Damage from High-Pressure Water Jets in Glass Jar Sterilization?
1. Scenario & Pain Point
Glass jar producers report breakage rates of 3–7% during water spray retort cycles, especially with thin-walled or irregular-shaped containers. Direct high-velocity water impact causes microfractures, leading to catastrophic failure during cooling or storage.
2. Root Cause Analysis
Excessive nozzle pressure (>0.3 MPa), fixed-angle spray targeting jar shoulders, and absence of cushioning racks concentrate mechanical stress on vulnerable glass zones.
3. Step-by-Step Solution
Install ZLPH’s low-impact diffuser nozzles (operating at 0.15–0.2 MPa) with randomized spray angles; pair with silicone-coated, spring-loaded racks that absorb hydraulic shock. Reduce initial heating ramp rate to ≤1.5°C/min to minimize thermal shock synergy.
4. Troubleshooting & Prevention
Always validate jar integrity per ASTM C147 before retort trials; avoid stacking jars without interlayer padding; monitor water pressure decay during cycle—sudden drops indicate nozzle blockage requiring cleaning.
5. Validation Results
A European baby food manufacturer cut glass breakage from 5.8% to 0.3% after retrofitting ZLPH’s gentle-spray system, saving $220K annually in waste and downtime.

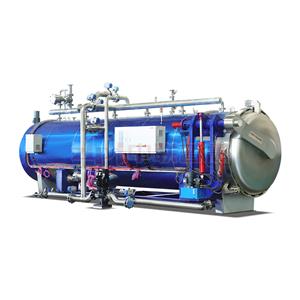

Industry Best Practices for Water Spray Retort Reliability
Based on 6+ years of global deployments, ZLPH recommends this 5-step framework for robust thermal processing:
1. Define Worst-Case Conditions
Design for maximum product density, lowest thermal conductivity, and ambient summer temperatures—not ideal lab scenarios.
2. Validate Fluid Dynamics Early
Use CFD simulation during OEM design phase to optimize nozzle placement and baffle geometry before metal fabrication.
3. Implement Multi-Point Thermal Monitoring
Embed redundant RTDs at cold-spot locations identified in mapping studies; integrate with SPC for real-time process control.
4. Standardize Maintenance Protocols
Schedule quarterly nozzle inspection, pump seal replacement, and PLC calibration to sustain performance.
5. Partner with Process-Aware OEMs
Choose suppliers like ZLPH who combine mechanical engineering with deep sterilization science expertise—not just hardware vendors.
Frequently Asked Questions (FAQ)
Q: Can I retrofit an existing steam retort into a water spray system?
A: Only if the vessel design supports internal piping, high-flow pumps, and drainage—most cannot. ZLPH offers cost-effective full-system OEM replacements with 8-week lead time.
Q: What’s the minimum water pressure needed for effective heat transfer?
A: 0.12 MPa ensures adequate convection without product damage; our systems auto-regulate between 0.12–0.25 MPa based on load type.
Q: How often should I recalibrate temperature sensors?
A: Every 6 months per ISO 22000; ZLPH retorts include NIST-traceable calibration ports for quick field verification.
Q: Are ZLPH water spray retorts CE and FDA compliant?
A: Yes—fully certified to PED 2014/68/EU, ASME BPVC Section VIII, and FDA 21 CFR Part 113 for low-acid canned foods.
Q: Can your system handle mixed-product loads (e.g., cans + pouches)?
A: Yes—with our AI-driven recipe manager that auto-selects optimal spray pattern, temperature ramp, and hold time per product matrix.
Why Trust ZLPH for Your Water Spray Retort Needs?
ZLPH MACHINERY TECHNOLOGY CO., LTD. is a specialized OEM with 21 mechanical and PLC engineers, 4 sterilization process scientists, and 14 global after-sales technicians—all with 10+ years in thermal processing. Our 15,000m² factory houses precision CNC, robotic welding, and full-scale test bays for pre-shipment validation. We’ve delivered 500+ water spray retorts to 30+ countries, serving Fortune 500 food brands and private-label co-packers alike. Every system undergoes 72-hour endurance testing and third-party thermal mapping before shipment.
Custom Support Includes:
- On-site thermal process assessment
- Load-specific spray pattern simulation
- Free pilot testing with your actual products
- 24/7 remote diagnostics via IoT-enabled PLC
